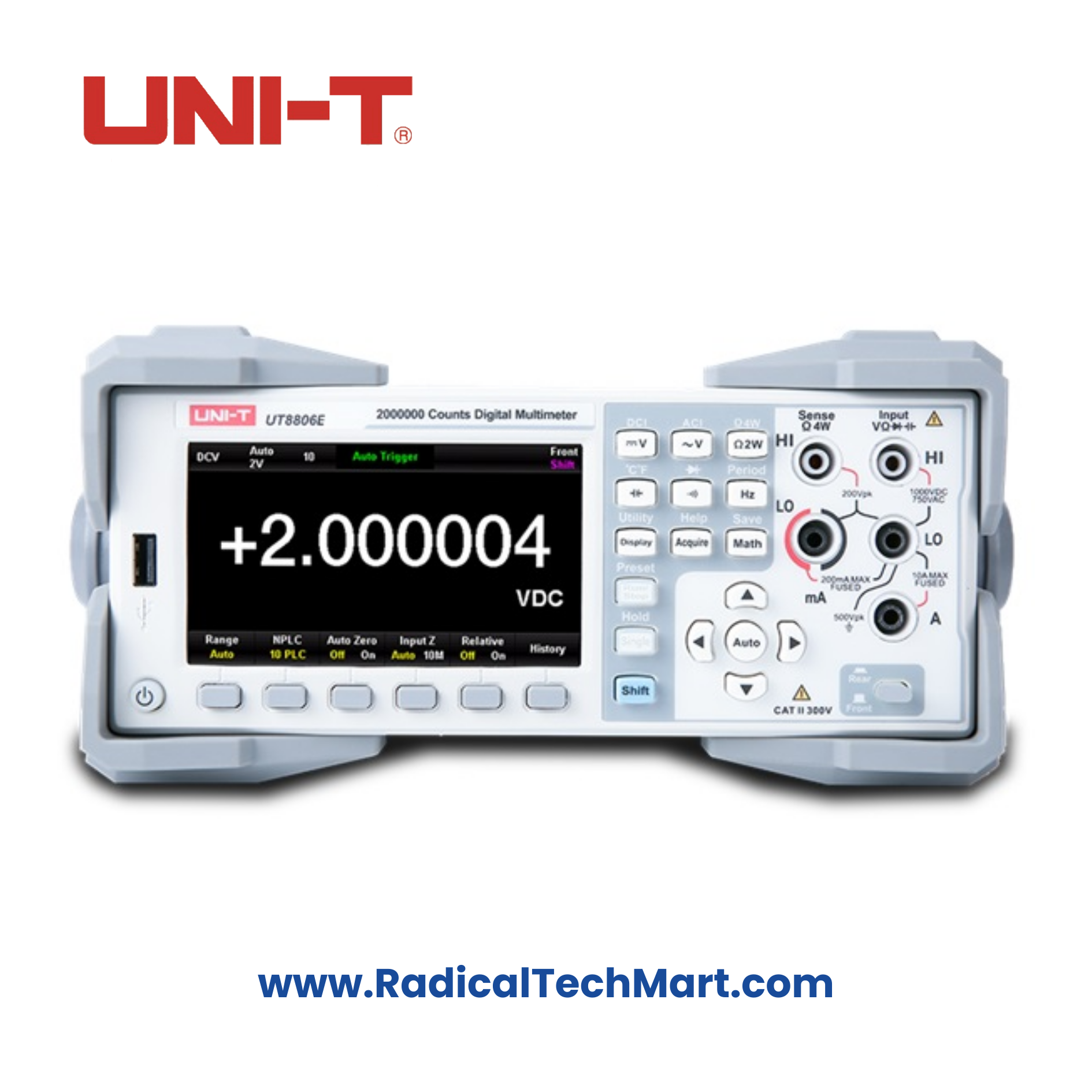

UNI-T UT8806E Digital Benchtop Multimeter- 6.5 Digit
The UT8806E is a high-precision 6½-digit desktop digital multimeter designed for advanced measurement applications, providing a maximum display of 2,000,000 counts. Its key features include:
High Precision and Multi-Functionality: The UT8806E offers exceptional precision and versatility, making it suitable for various high-accuracy measurement tasks.
Display: It is equipped with a 4.3-inch TFT display with a resolution of 480x272, offering clear and easy-to-read measurements.
Connectivity: The multimeter supports multiple connectivity options, including USB (both Device & Host), LAN, RS-232C, and optional GPIB, allowing for integration into various laboratory and automated test setups.
Frequency Response: With a frequency response of 300kHz, the UT8806E is capable of accurately measuring a wide range of frequencies.
Measurement Display Styles: The instrument allows measurements to be viewed in four display styles—numbers, bar graphs, trend graphs, and histograms—enabling a detailed analysis of the data.
Dual Display: It features dual display functionality, enabling simultaneous viewing of the main measurement and secondary measurement for more comprehensive data analysis.
Storage: The UT8806E provides generous storage options, with an internal 32GB NandFlash and external USB flash drive support for storing setup and measurement data.
Mathematical Operations: It supports various mathematical operations, including statistics, limits, dB, dBm, and relative operations, catering to a wide range of measurement requirements.
Test Rate: The multimeter boasts a fast test rate of up to 10,000 readings per second, making it suitable for rapid data acquisition in demanding applications.
Accuracy: It offers an impressive DC voltage accuracy of 0.0035% per year, ensuring reliable and consistent measurements.
Warranty: The UT8806E comes with a 3-year warranty, ensuring durability and reliability for long-term use.
This multimeter is ideal for high-precision measurements in laboratories and automated test systems.
